Bs1139 Galvanized scaffolding Frame/formwork systems

FOB Reference Price:Get Latest Price
US $10-20 / Sets | 20 Metric Ton/Metric Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
ADTO
Model Number:
1219*1700/1930*1700/1524*1524MM
Type:
Scaffolding Parts, Ladder frame,H frame,Main Frame
Scaffolding Part Type:
Scaffolding Frames
Product name:
Bs1139 Galvanized scaffolding Frame/formwork systems
Surface finish:
Pregalvanized ,painted
Application:
Outdoor and indoor
Material:
Q195
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export package
Port
Tianjin
Lead Time :
Within 20 days after recieving the deposit of L/C

  Bs1139 Galvanized scaffolding Frame/formwork systems



Frame scaffolding are widely used in the North America and some area in Asia and Europe regions, and different regions use different styles, for example, in Southeast Asia, probably the 3' or 4' (914mm or 1219mm) wide x 1700mm high walk-through frame is the dominant style in US west regions undoubtedly the most prevailing style is the snap on system...

Advantages:
1) Reasonable structure, simple assembly, quick operation, safety & reliability;
2) Easy to transport and knock down, high efficiency, save massive manpower and resource.
3) Easy to carry and operate with the weight about 20kg/piece.
4) Assembly & disassembly with hands only.

Components:
Pre-galvanized tube, Joint Pin, Lock Pin, Cross Brace, Base Jack or Universal Wheel.





A full set of frame is including:2pcs main frame,2 pairs of cross brace and 4 joint pins.




STD/ Ledger(P.G.)mmSize (mm)KGSTD/ Ledger(H.D.G.)mmSize (mm)kg
Φ42*2.2/Φ42*2.01930*121915.05Φ42*2.2/Φ42*21930*121915.05
Φ42*2.0/Φ42*2.01930*121914.33Φ42*2/Φ42*21930*121914.33
Φ42*2.1/Φ42*21930*121914.43Φ42*2.1/Φ42*21930*121914.43
Φ42*2.2/Φ42*21700*121913.51Φ42*2.2/Φ42*21700*121913.51
Φ42*2/Φ42*21700*121912.88Φ42*2/Φ42*21700*121912.88
Φ42*2.1/Φ42*21700*121913.20Φ42*2.1/Φ42*21700*121913.20
Φ42*2.2/Φ42*21524*121912.21Φ42*2.2/Φ42*21524*121912.21
Φ42*2/Φ42*21524*121911.64Φ42*2/Φ42*21524*121911.64
Φ42*2.1/Φ42*21524*121912.00Φ42*2.1/Φ42*21524*121912.00
Φ42*2.2/Φ42*2914*12199.56Φ42*2.2/Φ42*2914*12199.56
Φ42*2.2/Φ42*21930**91414.19Φ42*2.2/Φ42*21930*91414.19
Φ42*2/Φ42*21930**91413.47Φ42*2/Φ42*21930*91413.47
Φ42*2.2/Φ42*21700*91412.65Φ42*2.2/Φ42*21700*91412.65
Φ42*2/Φ42*21700*91412.02Φ42*2/Φ42*21700*91412.02
Φ42*2.2/Φ42*21524*91411.60Φ42*2.2/Φ42*21524*91411.60
Φ42*2/Φ42*21524*91411.03Φ42*2/Φ42*21524*91411.03

*STD: Standard
*P.G.: Pre-Galvanized
*H.D.G.: Hot Dipped Galvanized

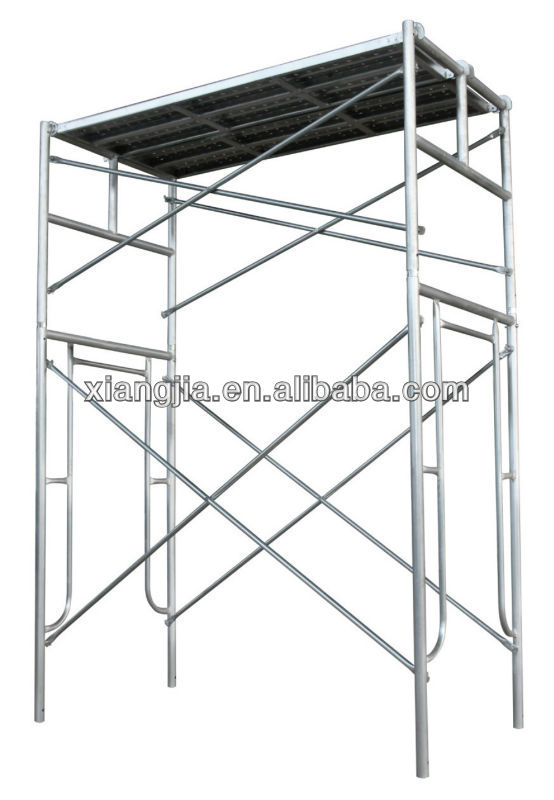

Product Show:









Our factory Show:
