Quick Details

  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: ADTO
  • Model Number: Painted steel formwork for columns made in China
  • Product name: Painted steel formwork for columns made in China
  • Surface finish: Hot galvanized and Painted
  • Application: Outdoor construction
  • Material: Q235,Q345
  • Brand: ADTO

Packaging & Delivery

Packaging Details Standard Export package
Delivery Time Within 20 days after recieving the deposit of L/C

slab painted construction concrete scaffold steel metal formwork for columns building



1 Brief Introduction



Adjustable column formwork is a formwork for square or rectangle, which is designed for variational dimension in

given range. Its adjustable ability comes true by the change of vertical walings relative position. As the left pictures

 described, the column formwork is composed of plywood, timber beam, vertical waling, joint connector, yoke, tie rod,

wing nut, and clamp. When used, you can adjust the dimension of formwork according to the given dimension.



2   Special features



  Vertical waling has two standards for quadrate column or rectangular column with their sides in 4001200mm.

As the below pictures shown, you can turn the size of 800×800mm to the size of 400×400mm, the rest may be

deduced by analogy, you can complete any dimension in the given range and it is permissible for both square ness

 and rectangle.



3    Protection  tips



(1 )    Every assembled formwork must be numbered in drawing order, and attach a wood label on ordainable place.

(2 )   Formwork must be leaned against backstop, block off formworks by wood block when they put together,

         they are prevented to be mangled.

(3 )   Raining,cover the formworks by plastic cloth, keep them dryness do your best.

(4 )   Dont collided, when install and dismantle.

(5 )    Protect the formworkscorner during construct.

(6 )   There have five pins in the Right angle element connector, Insert pin in the holes where formwork be figure bear.

(7 )    Wing nut must figure bear, Keep it straight.



4.Specification



No.

Size(mm)

Weight(kg/pc)



No.

Size(mm)

Weight(kg/pc)

HF9018

900*1800*55

70.89



HA0018

50*50*1800

4.34

HF9015

900*1500*55

59.47



HA0015

50*50*1500

3.7

HF9012

900*1200*55

48.03



HA0012

50*50*1200

2.94

HF6018

600*1800*55

43.1



HE1515

150*150*1500

15.2

HF6015

600*1500*55

36.3



HE1512

150*150*1200

12.26

HF6012

600*1200*55

31.7



HE1509

150*150*900

9.34

HF5018

500*1800*55

36.27



HY1018

100*100*1800

14.56

HF5015

500*1500*55

30.15



HY1015

100*100*1500

12.29

HF5012

500*1200*55

25.55



HY1012

100*100*1200

9.72

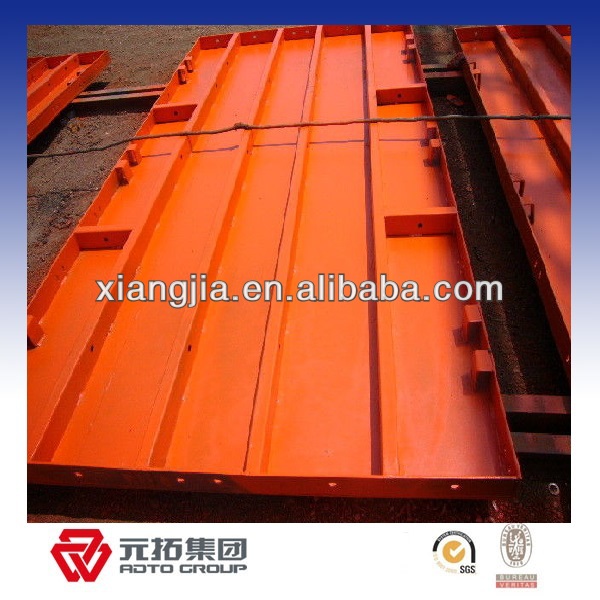

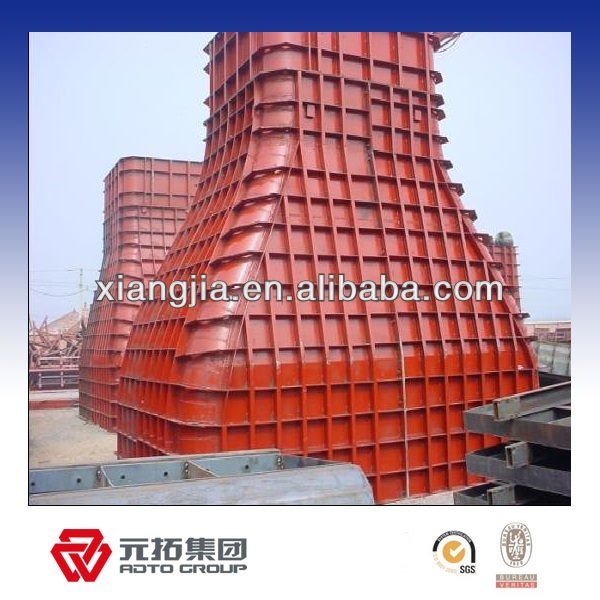

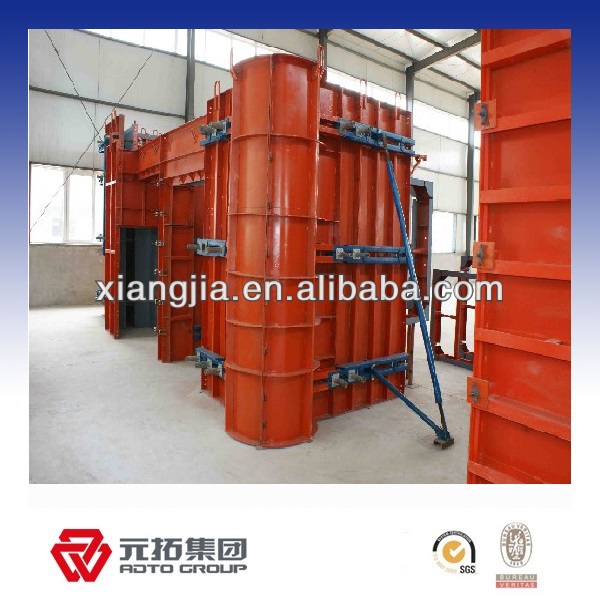

Formwork show:







Certifications







Quality control





Trade Show







We also Supply:
Galvanized steel pipe, Ringlock scaffolding system, Adjustable steel props, Adjustable

screw jack, Frame system, Metal plank, Scaffolding coupler& accessories, Cuplock scaffolding

system etc.







For more details, please contact us freely.  ^——^
