Quick Details

  • Standard: BS, JIS, GB, DIN, ASTM, API, BS 1387, BS 1139, JIS G3444-2006, GB/T 8163-1999, GB/T 8162-1999, GB/T 3091-2001, DIN EN 10025, ASTM A106-2006, ASTM A213-2001, ASTM A53-2007, API 5CT, API 5L, BS1139-1990,EN39-2001,JIS G3444:2004
  • Grade: 10#-45#, 16Mn, A53-A369, Q195-Q345, 10#, 20#, 16Mn, A53(A,B), A106(B,C), Q235, Q345, Q195
  • Thickness: 0.6 - 20 mm
  • Section Shape: Round
  • Outer Diameter: 0.5 - 16 inch
  • Place of Origin: Tianjin, China (Mainland)
  • Secondary Or Not: Non-secondary
  • Application: Fluid Pipe
  • Technique: Hot Rolled
  • Certification: API, ISO9001:2000
  • Surface Treatment: Galvanized
  • Special Pipe: API Pipe
  • Alloy Or Not: Non-alloy
  • Name: scaffolding hot dipped galvanized steel pipe factory selling
  • Material: Q235B,Q345B
  • Surface: Hot dipped galvanized/ pre-galvanized
  • Dimension: As per client's request
  • Outer diameter: 48.3mm
  • Performance: good bearing capacity,durable
  • Inspection: SGS, BV, Lloyds etc
  • Others: OEM service available

Packaging & Delivery

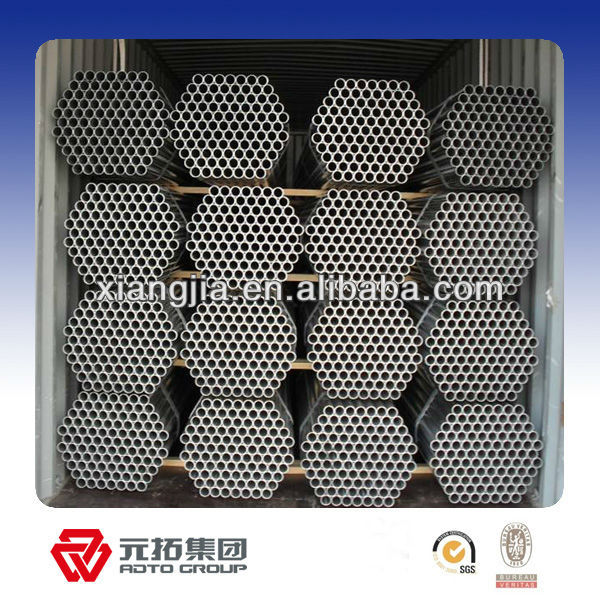

Packaging Details Our EN39 galvanized steel pipe for construction can be packed in bundle, suitable for sea shipment
Delivery Time 25 days after receive LC or Deposit

scaffolding  hot dipped galvanized steel pipe factory selling



Specification

1.Product name: pipe for construction

2.Outer diameter: 48.3mm/48.6mm

3.Wall thickness:0.6mm-20.0mm
4.Length:0.3-12m
5.Zn coating mass:275-600g/m2
6.Material:Q235B,Q345B,S235JR,S355JR,STK400,STK500
7.Tolerence: 8%
8.Surface finish: hot dipped galvanized, electro galvanized, black, painted, engraved

9.Standard:BS1139-1990,EN39-2001,JIS G3444:2004
10.Port of loading: Tianjin
11.Samples are available
12.ISO 9001-2000 approved.
13.Performance:good bearing capacity,durable & stable
14.Test: SGS, BV or as per your request
15.Produced in our own factory,can control the zinc thickness much better
16.OEM service is available.



High tensile galvanized BS1139 steel pipe for construction are designed for pipes&coupler scaffolding.

The tubes have hot-dipped galvanized surfaces finish so as to provide excellent appearance with

sufficient durability in such applications where salty air or long-term weather exposures are inevitable.





Standard Size



pipe for construction

Outside diameter (mm)

pipe for construction

Wall thickness (mm)

pipe for construction

Length (m)

48.3-48.6

2.0-2.5

0.3-12

48.3-48.6

2.75

0.3-12

48.3-48.6

3.0

0.3-12

48.3-48.6

3.2

0.3-12

48.3-48.6

3.6

0.3-12

48.3-48.6

3.8

0.3-12

48.3-48.6

4.0

0.3-12

38.1

4.0

0.3-12

42.3

4.0

0.3-12





Why Us:



Xiangjia Steel is  a leading manufacturer of scaffolding steel pipe for construction, system scaffoldings and accessories,

galvanized steel tube,Frames,steel props, metal planks and other related products.



• 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin.



Photos:

Factory Show







Certification





Trade Terms:
• Payment:  T/T 30%  in advance, balance against copy of B/L,Western Union, L/C etc.
• Production Lead Time: 15- 40days after deposit paid.
• Shipping Methods: Oean carriage.
• FOB Shipping Port: Tianjin, Shanghai, China.
• FOB/CIF/CNF term available



Quality control







Trade Show







We also Supply:
Scaffolding steel pipe for construction, Ringlock scaffolding system, Adjustable steel props, Adjustable screw jack,

Frame system, Metal plank, Scaffolding coupler& accessories, Suplock scaffolding system etc.



For more detals please contact us freely ^______^
