Scaffolding steel plank/board for construction

FOB Reference Price:Get Latest Price
US $3-12 / Piece | 1500 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Day
Port:
Wuhan & Tianjin
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
ADTO
Model Number:
210/225/240/250
Product name:
steel plank for construction
Surface:
Galvanzied
Type:
Scaffolding part
Certificate:
ISO9001:2008/SGS
Emboss:
available
Specification:
210/240/250/300mm
Packaging & Delivery
Packaging Details
In bulk or 100 pcs per bundle or as your request.
Delivery Time
less than 20/30/40 days after received your deposit or L/C.

Scaffolding steel plank for construction







1)    A larger capacity

       When the scaffolding geometry and structure is compliant with the relevant requirements, the general single-tube column scaffold bears capacity of up to 15kN ~ 35kN (1.5tf ~ 3.5tf, design value).



2)    Easy disassembly, erection and flexible

       Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.



3) To compare the economy

     Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry, focus on improving  working capital utilization rate of steel, the material consumption can be achieved better economic results. Fastening steel frame construction steel per square meter equivalent to about 15 kg.





Size (mm)

Weight (kg/pc)

Size (mm)

Weight (kg/pc)

WALK BOARDS

CATWALK

210 x 45 x 1.2 x 4000

13.60

500 x 50 x 1.2 x 1829

15.50

210 x 45 x 1.2 x 3000

10.26

480 x 45 x 1.2 x 1829

13.50

210 x 45 x 1.2 x 2000

6.93

450 x 45 x 1.2 x 1829

13.00

210 x 45 x 1.2 x 1000

3.59

450 x 38 x 1.2 x 1829

12.50

240 x 45 x 1.2 x 4000

14.87

420 x 45 x 1.2 x 1829

12.50

240 x 45 x 1.2 x 3000

11.23

500 x 50 x 1.2 x 1219

11.00

240 x 45 x 1.2 x 2000

7.59

480 x 45 x 1.2 x 1219

10.00

240 x 45 x 1.2 x 1000

3.94

450 x 45 x 1.2 x 1219

9.50

250 x 50 x 1.2 x 4000

15.67

450 x 38 x 1.2 x 1219

9.00

250 x 50 x 1.2 x 3000

11.84

420 x 45 x 1.2 x 1219

9.00

250 x 50 x 1.2 x 2000

8.00

330 x 50 x 1.2 x 1829

11.50

250 x 50 x 1.2 x 1000

4.15

330 x 50 x 1.2 x 1219

8.50

GALVANIZED SCAFFOLDING PIPE

SCAFFOLDING COUPLER

48.3 x 4.0 x 6000

27.00

Double Coupler

Swivel Coupler

48.3 x 3.6 x 6000

24.52

Sleeve Coupler

Inner Joint Pin

48.3 x 3.2 x 6000

21.99

Putlog Coupler

Girder Coupler

48.3 x 3.0 x 6000

20.71

Limpet Coupler

Ladder Clamp

48.6 x 2.4 x 6000

16.89

Steel Prop

Base Jack



  PICTURES:








Packaging & Shipping



Steel plank will be shipped by 40 feet container.The loading quantity is different from the length.For example,for the steel plank 240*45*1.2*3000mm,one 40 feet container can hold 1960pcs.










Our Services

We are the manufacturer of the following products,scaffold design also can be offered to you.







Company Information

 As one of the subsidiaries of ADTO, Xiang Jia Steel now has 6 ERW steel tube production lines, 2 hot dipped galvanizing lines and 4 hollow section production lines. It’s annual capacity reaches 100,000 matric tons. All products are manufactured under standards of ASTM A53, BS1387, BS1139, DIN10219, JISG3444 and API 5L, etc. Xiang Jia Steel becomes one of the leading manufacturer of steel pipes and hollow sections in China.

ADTO has 23 scaffolding production lines. Product range includes Frame, Coupler system scaffolding, Ring-Lock scaffolding system, Cup-Lock scaffolding system, steel props and the accessories like steel plank, steel stair case, screw base jack and U head jack. The annual sales reached US$150,000,000 in 2011, and we estimate that our turnover will be over US$1.000.000.000 in 2015.

The Group exports products throughout the world-Latin America, West Europe, East Europe, Middle East, South East Asia, North Africa, West Africa,Oceanian and South Africa etc. We are proud that many of our customers had grown up with us and have loyal to us from the time the business started, right through to present.

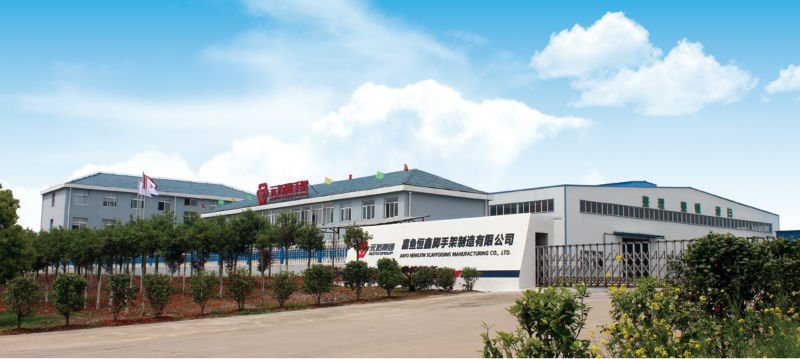

FACTORY:











Trade Show





We will attend Canton Fair twice per year! Hope can meet you here!
